Example projects using CMSIS-RTOS RTX are available for various development boards. To make use of these examples, you need to install a Device Family Pack in µVision and use Pack Installer to open a CMSIS-RTOS Blinky project. If you wish to start a CMSIS-RTOS RTX from scratch, follow these steps:

Create a new project and select a device.

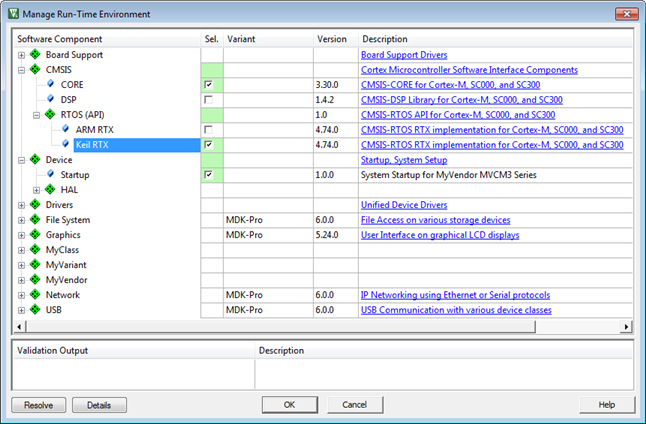

In the Manage Run-Time Environment window that opens, select CMSIS::CORE and CMSIS::RTOS (API)::Keil RTX. If the Validation Output requires other components to be present, try to use the Resolve button:

Click OK. In the Project window, you will see the files that have been automatically added to you project, such as RTX_Conf_CM.c and the system and startup files:

You can add template files to the project by right-clicking on Source Group 1 and selecting Add New Item to 'Source Group 1'. In the new window, click on User Code Template. On the right-hand side you will see all available template files for CMSIS-RTOS RTX:

Finally, configure RTX to the application's needs using the RTX_Conf_CM.c file.

Define and Reference Object Definitions

With #define osObjectsExternal objects are defined as external symbols. This allows to create a consistent header file that is used throughout a project. If you are using the CMSIS-RTOS 'main' function user code template, such a header file (called osObjects.h) will be added automatically to the project:

Code Example

/*----------------------------------------------------------------------------
   osObjects.h: CMSIS-RTOS global object definitions for an application
 *----------------------------------------------------------------------------

   This header file defines global RTOS objects used throughout a project

   #define osObjectsPublic indicates that objects are defined; without that
   definition the objects are defined as external symbols.

 *--------------------------------------------------------------------------*/

#ifndef __osObjects
#define __osObjects

#if (!defined (osObjectsPublic))
#define osObjectsExternal          // define RTOS objects with extern attribute
#endif

#include <cmsis_os.h>              // CMSIS RTOS header file

// global 'thread' functions -------------------------------------------------
extern void  thread_sample (void const *argument);       // function prototype
osThreadDef (thread_sample, osPriorityBelowNormal, 1, 100);

// global 'memory pools' -----------------------------------------------------
osPoolDef(MyPool, 10, long);

#endif  // __osObjects

This header file defines all objects when included in a C/C++ source file. When #define osObjectsExternal is present before the header file, the objects are defined as external symbols. A single consistent header file can therefore be used throughout the whole project.

Code Example

#include "osObjects.h" // Definition of the CMSIS-RTOS objects
